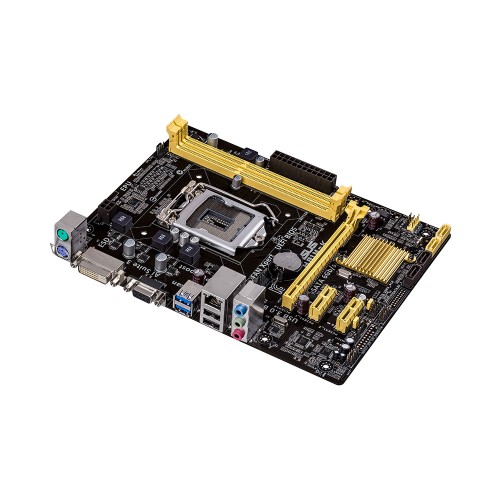

Asus H81M-K 4th Gen Motherboard
PRICE: ৳3000
STOCK: 20
প্রোডাক্ট কোড : P0541
বিস্তারিত
Key Features
Model: H81M-K
Intel Socket 1150 for 4th Generation Core i7/i5/i3/Pentium/Celeron Processors
2 x DIMM, Max. 16GB, DDR3 Non-ECC, Un-buffered Memory
New UEFI BIOS & USB 3.0 Boost (UASP Support)
AI Suite 3-One-stop access to innovative ASUS features
Specification
Basic Information
Supported CPU
Intel Socket 1150 for 4th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Supports Intel 22 nm CPU
Supports Intel Turbo Boost Technology 2.0
Chipset
Intel H81
BIOS
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
Form Factor
uATX Form Factor
8.9 inch x 6.9 inch ( 22.6 cm x 17.5 cm )
Audio
Realtek ALC887/897 8-Channel High Definition Audio CODEC
- Supports : Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Expansion Slots
PCI
1 x PCIe x16
2 x PCIe 2.0 x1
Memory
Type
DDR3
Slots
2 x DIMM
Supported Memory
1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Maximum Memory
Max. 16GB
Graphics
Graphics
Integrated Graphics Processor
Multi-VGA output support : DVI/RGB ports
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Max Shared Memory
1024 MB
Connector & Ports
D-Sub (s)
1 x D-Sub
DVI-D (s)
1 x DVI
USB (s)
Intel H81 chipset :
2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue)
Intel H81 chipset :
6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)
LAN Port (s)
Realtek 8111G, 1 x Gigabit LAN Controller(s)
Supported Storage
Intel H81 chipset :
2 x SATA 6Gb/s port(s), yellow,
2 x SATA 3Gb/s port(s), dark brown,
Supports Intel Rapid Start Technology, Intel Smart Connect Technology
Audio
3 x Audio jack(s)
Internal I/O Ports
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x SATA 6Gb/s connector(s)
2 x SATA 3Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x Clear CMOS jumper(s)
Others
Special Features
ASUS EPU :
- EPU
ASUS Exclusive Features :
- GPU Boost
- AI Suite 3
- Ai Charger
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
ASUS Q-Design :
- ASUS Q-Slot
Warranty Information
Manufacturing Warranty
3 Years
