Intake BD: GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard (official Used Product)

20%

ছাড়

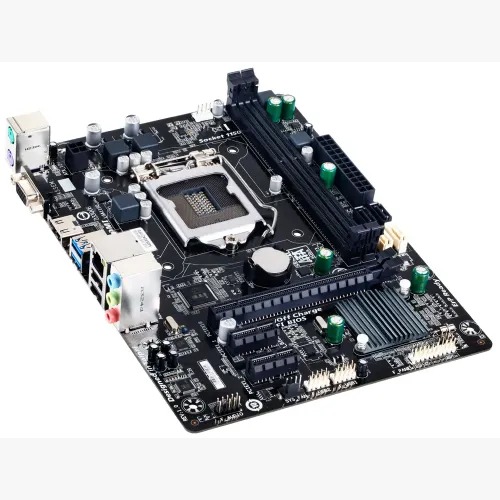

GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard (official Used Product)

PRICE: ৳3600

প্রোডাক্ট কোড : P0541

কালার ও সাইজ নির্বাচন করুন।

Size -

GA-H81M-H

Color -

Black

✖

In Stock

- +

WhatsApp +8801777513136

ঢাকার মধ্যে ১-৩ দিন ডেলিভারি চার্জ ৮০ টাকা
ঢাকার বাহিরে ৩-৫ দিন ডেলিভারি চার্জ ১৩০ টাকা

Description
Reviews (0)

বিস্তারিত

Key Features

Model: GA-H81M-H

Supported CPU: 4th Generation Intel Core processors (LGA1150)

Supported RAM: 2 x 1.5V DDR3 DIMM up to 16 GB 1600MHz

Graphics Output: 1 x D-Sub, 1 x HDMI

Features: LAN with high ESD Protection

Specification

Basic Information

Supported CPU

Support for Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1150 package

L3 cache varies with CPU

Chipset

Intel H81 Express Chipset

BIOS

1 x 32 Mbit flash

Use of licensed AMI EFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor

Micro ATX Form Factor; 22.6cm x 17cm

Audio

Realtek ALC887 codec

High Definition Audio

2/4/5.1/7.1-channel

[22:24, 12/05/2026] 303/3 rabiul vai: Expansion Slots

PCI

1 x PCI Express x16 slot, running at x16

2 x PCI Express x1 slots

Memory

Type

DDR3

Slots

2 x 1.5V DIMM sockets

Supported Memory

Dual channel memory architecture

Support for DDR3 1600/1333 MHz memory modules

Support for non-ECC memory modules

Support for Extreme Memory Profile (XMP) memory modules

[22:24, 12/05/2026] 303/3 rabiul vai: Maximum Memory

16 GB

Graphics

Graphics

Integrated Graphics Processor - Intel HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920x1200

1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz

* Support for HDMI 1.4a version.

Max Shared Memory

1 GB

[22:24, 12/05/2026] 303/3 rabiul vai: Connector & Ports

HDMI

1 x HDMI

D-Sub (s)

1 x D-Sub

USB (s)

Chipset:

2 x USB 3.0/2.0 ports on the back panel

6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

LAN Port (s)

Realtek GbE LAN chip (10/100/1000 Mbit)

Supported Storage

Chipset:

2 x SATA 6Gb/s connectors (SATA3 0/1)

2 x SATA 3Gb/s connectors (SATA2 2/3)

[22:24, 12/05/2026] 303/3 rabiul vai: Connector & Ports

HDMI

1 x HDMI

D-Sub (s)

1 x D-Sub

USB (s)

Chipset:

2 x USB 3.0/2.0 ports on the back panel

6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

LAN Port (s)

Realtek GbE LAN chip (10/100/1000 Mbit)

Supported Storage

Chipset:

2 x SATA 6Gb/s connectors (SATA3 0/1)

2 x SATA 3Gb/s connectors (SATA2 2/3)

[22:24, 12/05/2026] 303/3 rabiul vai: Internal I/O Ports

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

2 x SATA 6Gb/s connectors

2 x SATA 3Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x front panel header

1 x front panel audio header

2 x USB 2.0/1.1 headers

1 x Clear CMOS jumper

Others

Special Features

Support for Q-Flash

Support for Xpress Install

Support for APP Center

* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.

@BIOS

EasyTune

EZ Setup

USB Blocker

Smart TimeLock

Smart Recovery 2

Support for ON/OFF Charge

Manufacturing Warranty

3 Years
