Intake BD: Gigabyte H410M H 10th Gen Micro ATX Motherboard (Officials used product)

8%

ছাড়

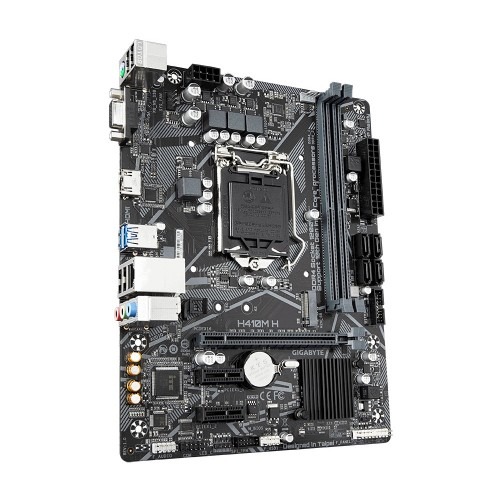

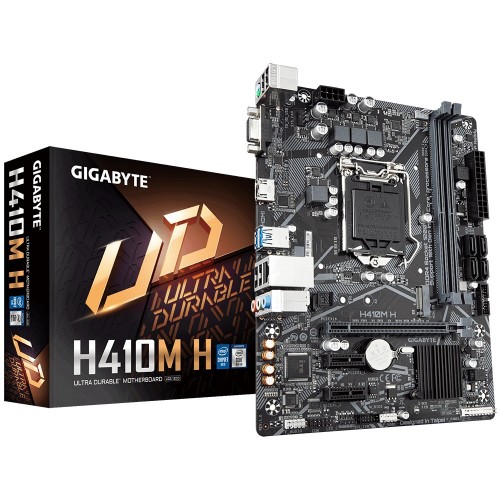

Gigabyte H410M H 10th Gen Micro ATX Motherboard (Officials used product)

PRICE: ৳5500

প্রোডাক্ট কোড : P0541

কালার ও সাইজ নির্বাচন করুন।

Size -

H410M H

Color -

Black

✖

In Stock

- +

WhatsApp +8801777513136

ঢাকার মধ্যে ১-৩ দিন ডেলিভারি চার্জ ৮০ টাকা
ঢাকার বাহিরে ৩-৫ দিন ডেলিভারি চার্জ ১৩০ টাকা

Description
Reviews (0)

বিস্তারিত

Key Features

Model: H410M H

Intel Socket LGA1200 for 10th Gen Processors

8-Channel HD Audio

Smart Fan 5 features

Anti-Sulfur Resistors Design

Basic Information

Supported CPU

Support for 10th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel Core i5 processors/ Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1200 package

L3 cache varies with CPU

Chipset

Intel H410 Express Chipset

BIOS

1 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor

Micro ATX Form Factor; 22.6cm x 17.4cm

Expansion Slots

PCI

1 x PCI Express x16 slot, running at x16

2 x PCI Express x1 slots

M.2 Socket

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)

Memory

Type

Dual-channel architecture

Slots

2 x DDR4 DIMM

Supported Memory

Intel® Core™ i9/i7 processors:

Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules

Intel Core i5/ i3/ Pentium /Celeron processors:

Support for DDR4 2666/ 2400/ 2133 MHz memory modules

Maximum Memory

64 GB

Graphics

Graphics

Integrated Graphics Processor-Intel HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz

Max Shared Memory

512MB

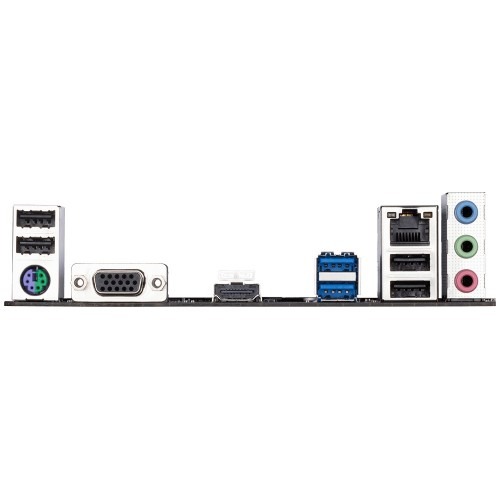

Connector & Ports

HDMI

1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz

D-Sub (s)

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

USB (s)

4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

LAN Port (s)

Realtek GbE LAN chip (1000 Mbit/100 Mbit)

Supported Storage

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)

4 x SATA 6Gb/s connectors

Audio

Realtek ALC887 codec

High Definition Audio

2/4/5.1/7.1-channel

Internal I/O Ports

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x system fan header

1 x RGB LED strip header

4 x SATA 6Gb/s connectors

1 x M.2 Socket 3 connector

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x serial port header

1 x Clear CMOS jumper

TPM (Trusted Platform Module )

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Others

Special Features

Support for APP Center

@BIOS

Ambient LED

EasyTune

Fast Boot

Game Boost

ON/OFF Charge

Smart Backup

System Information Viewer

Support for Q-Flash

Support for Xpress Install

Bundled Software

Support for Windows 10 64-bit

Warranty Information

Manufacturing Warranty

6 Month
