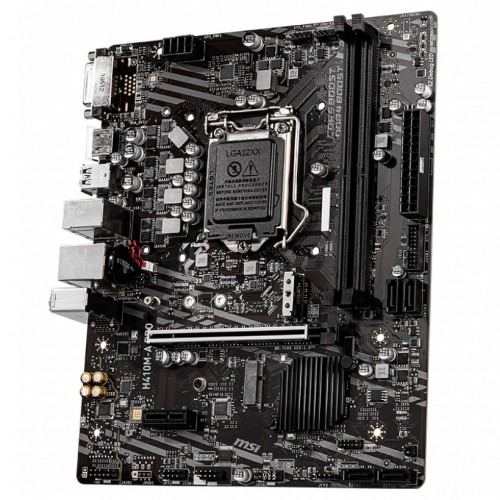

MSI H410M A Pro Intel 10th Gen Micro-ATX Motherboard

PRICE: ৳5500

প্রোডাক্ট কোড : P0541

কালার ও সাইজ নির্বাচন করুন।

Size -

MSI H410M A Pro Intel 10th Gen

Color -

✖

In Stock

- +

WhatsApp +8801777513136

ঢাকার মধ্যে ১-৩ দিন ডেলিভারি চার্জ ৮০ টাকা
ঢাকার বাহিরে ৩-৫ দিন ডেলিভারি চার্জ ১৩০ টাকা

Description
Reviews (0)

বিস্তারিত

Key Features

Model: MSI H410M A Pro

Intel LGA 1200 socket: Ready for 10th Gen Intel Core processors

DDR4, Audio & Core Boost

Low Latency Gaming LAN

Extreme Stability & Compatibility

View More Info

Specification

Basic Information

Supported CPU

Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket

Chipset

Intel H410

Form Factor

Mirco-ATX Form Factor: 9.3 in. x 7.5 in. (23.6 cm x 19.0 cm)

Expansion Slots PCI

1x PCIe 3.0 x16 slot (From CPU)

1x PCIe 3.0 x1 slot (From PCH)

M.2 Socket

1x M.2 slot (Key M)

-M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices

1x M.2 slot with E key for WiFi module only

Memory

Type

Dual Channel Memory Architecture

Slots

2 x DIMMSupported Memory

Intel Core i7/ i9

-Supports up to DDR4 2933 MHz

Intel Core i5 and below

-Supports up to DDR4 2666 MHz

Supports non-ECC, un-buffered memory

Supports Intel Extreme Memory Profile (XMP)

Maximum Memory

64GB Graphics

Graphics

1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz

1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz

Max Shared Memory

1GB

Connector & Ports

HDMI

1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz

DVI-D (s)

1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz

USB (s)Intel H410 Chipset

4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)

6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)

LAN Port (s)

1x Intel I219V Gigabit LAN controller Supported Storage

Intel H410 Chipset

4x SATA 6Gb/s ports

1x M.2 slot (Key M)

-M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices

Audio

Realtek ALC892 Codec

7.1-Channel High Definition Audio

Internal I/O Ports

1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

4x SATA 6Gb/s connectors

1x USB 2.0 connector (supports additional 2 USB 2.0 ports)

1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports)

1x 4-pin CPU fan connector

1x 4-pin system fan connector

1x Front panel audio connector

2x Front panel connectors

1x Serial port connector

1x Chassis Intrusion connector

1x Clear CMOS jumper

4x EZ Debug LED TPM (Trusted Platform Module )

1 x TPM module connector

Warranty Information

Manufacturing Warranty

03 Years
