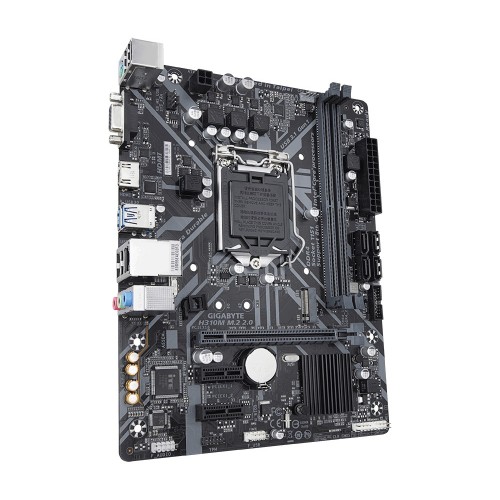

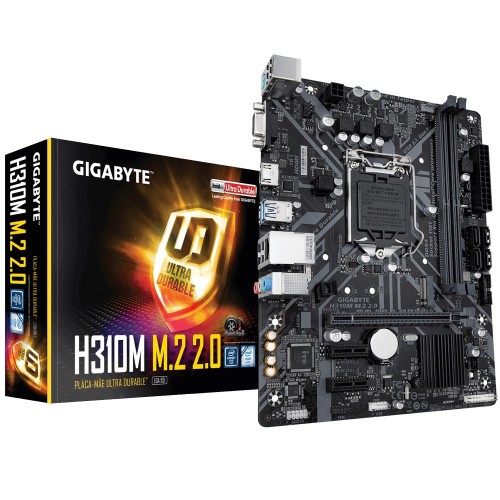

Gigabyte H310M M.2 9th Gen Micro ATX Motherboard (Official Used Product)
PRICE: ৳4200
STOCK: 40
প্রোডাক্ট কোড : P0541
বিস্তারিত
Key Features
- Model: H310M
- Supports 9th and 8th Gen Intel Core Processors
- Chipset: Intel H310 Express Chipset
- CEC 2019 Ready
- 2 x DIMM, Max. 32GB DDR4
Specification
Basic Information Supported CPU Support for 9th and 8th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package
L3 cache varies with CPUChipset Intel H310 Express Chipset BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Form Factor Micro ATX Form Factor; 22.6cm x 17.4cm Expansion Slots PCI 1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
2 x PCI Express x1 slots
(The PCI Express x1 slots conform to PCI Express 2.0 standard.)M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x2 SSD support) Memory Type Dual-channel memory architecture Slots 2 x DDR4 DIMM Supported Memory Support for DDR4 2666/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modulesMaximum Memory 32 GB Graphics Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 HzMax Shared Memory 1 GB Connector & Ports HDMI 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
Support for HDMI 1.4 version and HDCP 2.2.D-Sub (s) 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz USB (s) 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)LAN Port (s) Realtek GbE LAN chip (10/100/1000 Mbit) Supported Storage 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x2 SSD support)
4 x SATA 6Gb/s connectorsAudio Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channelInternal I/O Ports 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 header
1 x Clear CMOS jumperTPM (Trusted Platform Module ) 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) Others Special Features Support for APP Center
@BIOS
AutoGreen
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
Smart Backup
Smart Keyboard
System Information Viewer
USB Blocker
Support for Q-Flash
Support for Xpress InstallWarranty Information Manufacturing Warranty 03 Years
